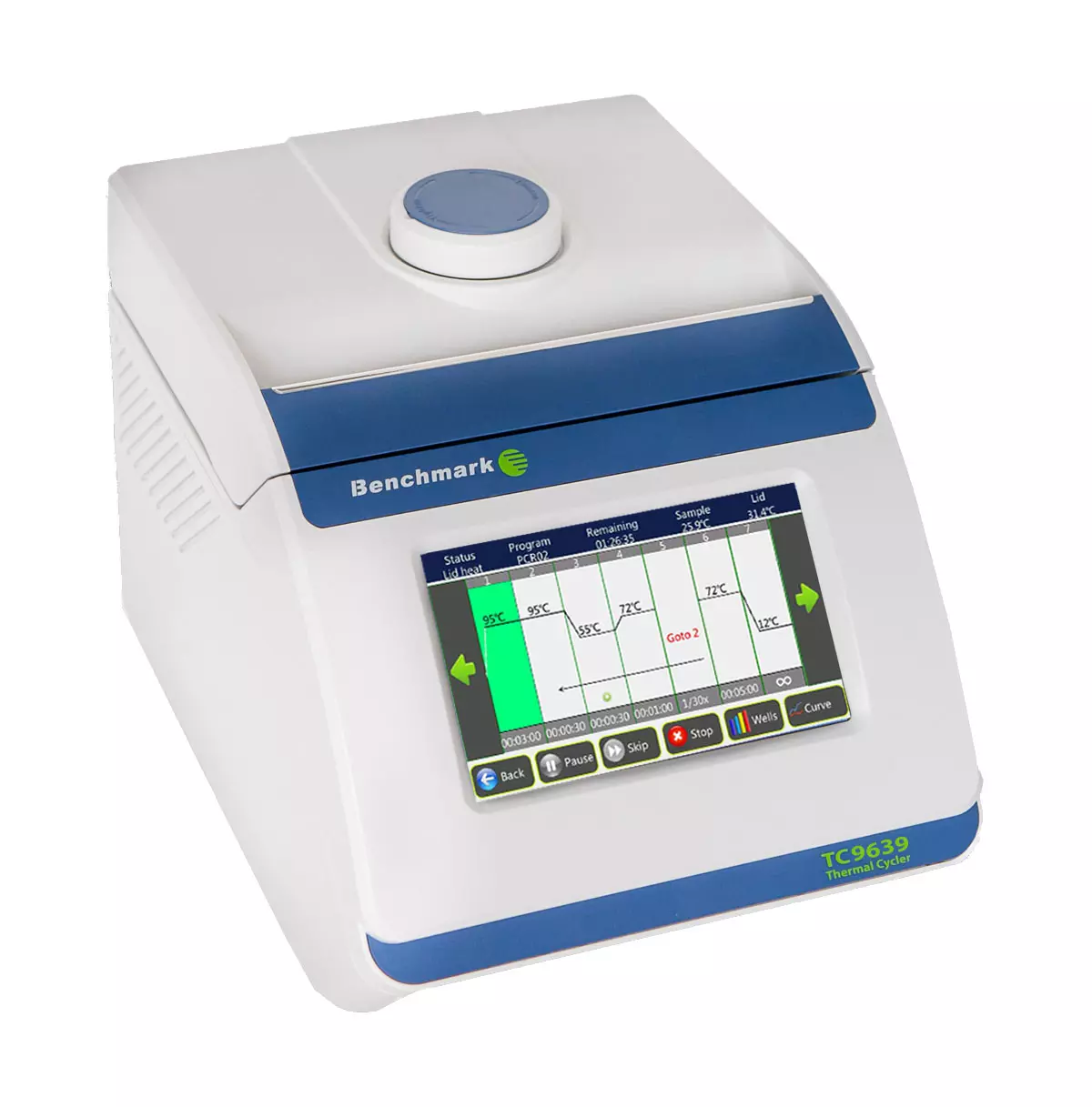

TC9639 Thermal Cycler

Item #: T5000-96
Manufacturer: Benchmark Scientific

Product Description

The TC9639 Thermal Cycler provides reliable & constant results for laboratories with medium to high throughput. From its unique, multi-format block to its large, touch-screen user interface, this cycler is loaded with features. The program wizard and 10 preinstalled programs make it easier than ever to get up and running.

A large, full color touch screen serves as the operations center where all functions are accessed. From the "Home" screen, simply touch an icon to view the last run program, enter the program library, or use the program wizard to quickly enter a protocol. In addition, icons for favourite programs can be added for faster access.

The program wizard guides users through quickly setting up a protocol in a single screen. Once entered, programs are shown graphically, and can be edited by simply touching the step that requires modification. Time and temperature increments can be built into programs as well as slower ramp rates. Storage capabilities are unlimited; programs can be stored in public folders, private (password protected) folders or on a flash drive. The full virtual keyboard allows for alphanumeric naming of programs and folders.

The fully adjustable heated lid prevents condensation and evaporation of samples. Lid temperature can be programmed, and when the block temperature is below 35, the lid automatically shuts off. Heating and cooling of the block are precisely and accurately controlled within exceptionally tight tolerances by a proprietary algorithm that simulates sample temperature.

With the multi-format block, there is no need for the expense of multiple interchangeable blocks. The TC 9639 has the flexibility to accept 96 x 0.2ml tubes, a 96 well plate or 39 x 0.5ml tubes all in the same sample block. An in-situ adapter is available for use with slides. Additionally, the unit may be purchased with a 384 well sample block.

Features

  • Gradient capabilities
    Ideal for protocol optimization
  • Intuitive touch screen control
    Works even when wearing gloves
  • Program Wizard - quick, easy & foolproof
  • Unique multi-format block
    • 0.2ml tubes or strips (96)
    • 0.5ml tubes (39)
    • 96 well plate (1)

Specifications

Capacity:

9639 Block (included):
96 x 0.2ml tubes / strips or 1 PCR plate or 39 x 0.5ml
384 Well Block:
1 x 384 well plate
In-Situ Adapter:
4 slides (for use with 9639 block)
Temp. Control Range:
0° to 100°C
Temp. Control:

Simulated sample or block

Accuracy/Uniformity:



± 0.2°C / ± 0.2°C

Ramp Rate



4°C / Sec. (maximum)
Lid Temp:
30°C to 112°C, user adjustable
Program Memory:
Unlimited with flash drive
Increments/Decrements:
Yes, both time and temperature

Multiuser Login:

Yes, with password protection
Power Failure Restart:
Yes
Power Supply:
Universal, 75 to 275V, 50 to 60Hz
Communication:
USB, LAN and RS232
Dimensions:
10.2 x 14.2 x 9.9 in. / 26 x 36 x 25cm
Weight:
16 lbs. / 7.3kg
Warranty:
2 years
