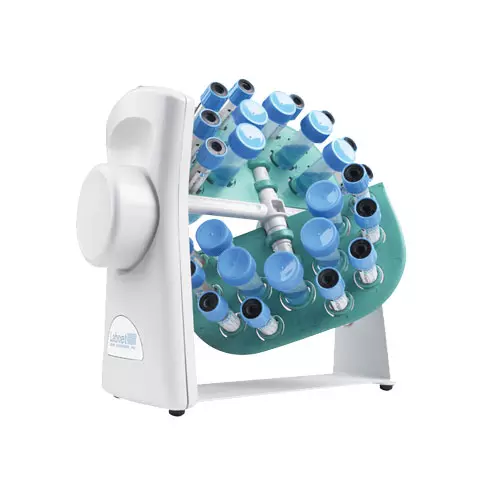

Revolver Rotator

Item #: H5600
Manufacturer: Labnet
sale: $344.25
from: $354.90 save: $10.65
Quantity unavailable. Try selecting a smaller quantity.

Product Description

 The unique design of this instrument allows for mixing tubes horizontally, vertically, or at any position in between, simply by turning the rotisserie plate.

Rotating tubes horizontally produces a gentle mixing motion for applications such as hybridization. Turning the rotisserie plate 90o, so that the tubes are positioned vertically results in an end over end tumbling action, such a that required foro mixing samples in blood tubes. Any position between these two extremes can be selected to produce the desired level of agitation.

Each rotisserie consists of two plates that can be adjusted independently of each other, thus allowing two types of motions to occur simultaneously in the same rotisserie. Rotisserie plates may be mixed and matched.

With it compact, portable design, the Revolver is easily transported from the bench to the cold room or incubator. The molded housing and rotisserie assembly are designed for easy cleaning and decontamination.

A 36 x 1.5/2.0 mL rotisserie is supplied with the unit. Rotisserie assemblies are also available for 15/10/7/5 mL tubes as well as 50mL tubes.


  • Complete 360° rotation
  • Adjustable 0-90° mixing angle
  • Interchangable rotisserie options for all common lab tubes.
  • Independently adjustable rotisseries
  • Cold room and incubator compatible


Speed range* Fixed, 20 rpm
Rotation axis Continuously adjustable, 0 - 90°
Ambient operating temperature +4° to 65°C
Dimensions (W x D x H) 9.4 x 5 x 6 in/23.9 x 12.7 x 15.24 cm
Weight 4.4 lb/2.0 kg
Electrical 230V~ or 120V~, 50/60 Hz
*Speed of 120V unit is 18 rpm.
