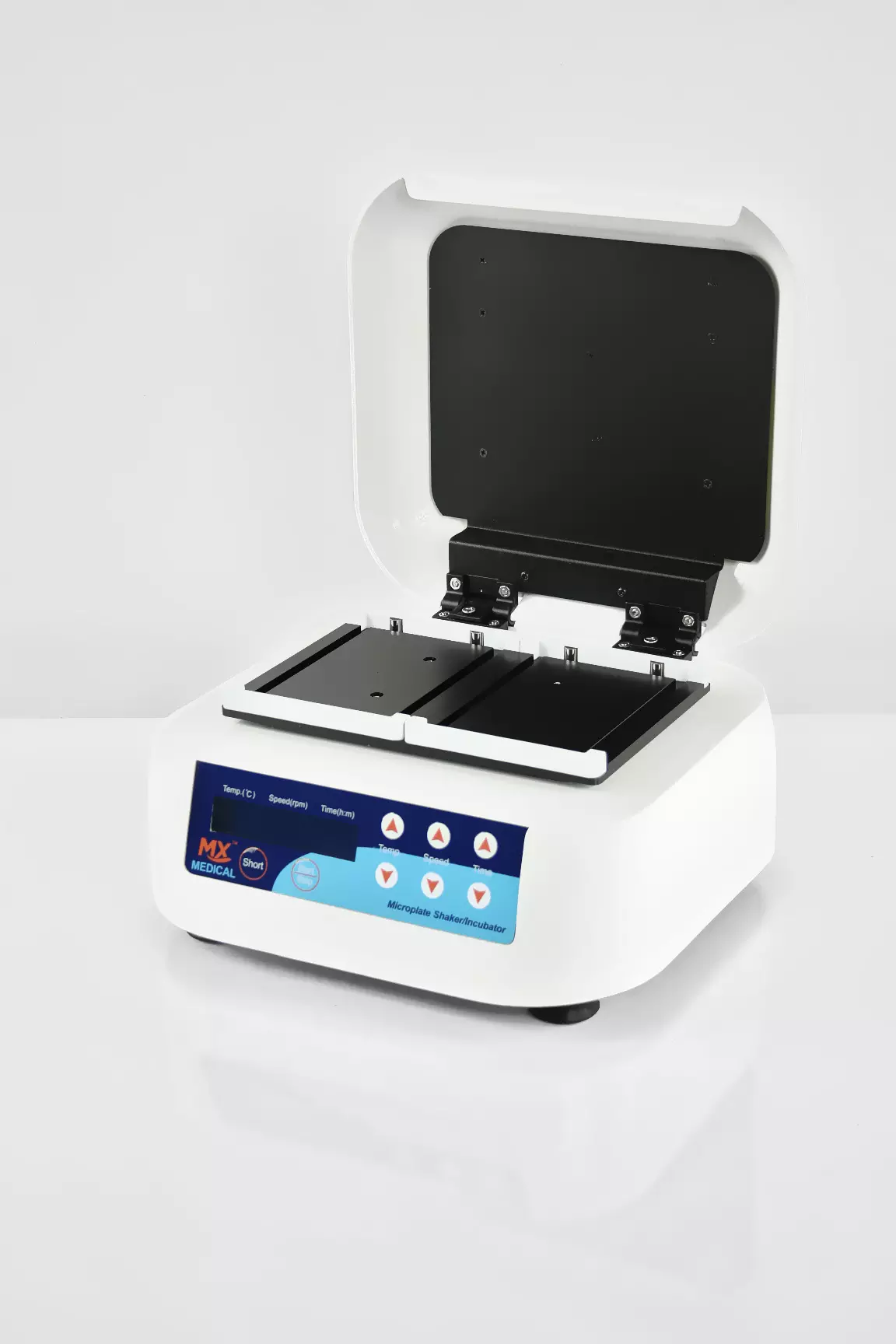

Thermo Plate Shaker Incubator

Designed to meet high demands of modern laboratory.

Item #: MX-TS Series
Manufacturer: C & A Scientific

Product Description

The Thermo Plate Shaker Incubator adopts micro-processing techniques combined with PID (proportional-integral-derivative) control to achieve a low profile, quiet, safe, and customizable machine that transports easily. It is primarily used for solution incubation of ELISA plates (96-well) and cell culture plates (24-well), and for mixing and incubating samples in micro-plates, cell culture plates, and other standard plates at proper temperature.

Features

  • LCD Display – Simple interface with temperature, shaking speed, and time setting.
  • Uniform Heating – Precise and uniform heating from both cover and bottom, two-sides heat each plate hole evenly.
  • Microprocessor – Allows for precise control and calibration of temperature and shaking speed.
  • Versatile – Configure two plates (for model MX-TS72) or four plates (for model MX-TS64). Not included.
  • Memory Feature – Machine remembers the last setting even after powering off.
  • Longevity – Brushless motor allows for safe and reliable operation and enhances the service life of the machine.

Specifications

Model



MX-TS72 Thermo Shaker Incubator

MX-TS64 Thermo Shaker Incubator

Temp. Control Range

R.T.+5 ~70°C

R.T.+5 ~60°C

Block Temp. Uniformity

<±0.5°C

<±0.5°C

Temp. Control Accuracy

<±0.2°C

<±0.2°C

Heat Platform Temp. Accuracy

<0.5°C (detect @37°C)

<0.5°C (detect @37°C)

Heating Time

<25min (from 20°C to 70°C)

<25min (from 20°C to 60°C)

Time Range

0 ~99h59min

0 ~99h59min

Capacity

2 plates

4 plates

Shaking Speed

300 ~1200rpm

300 ~1200rpm

Shaking Orbit

3mm (horizontal)

3mm (horizontal)

Power

150W

250W

Dimension ( LxWxH)

290 X 270 X 135mm

380 X 390 X 160mm
