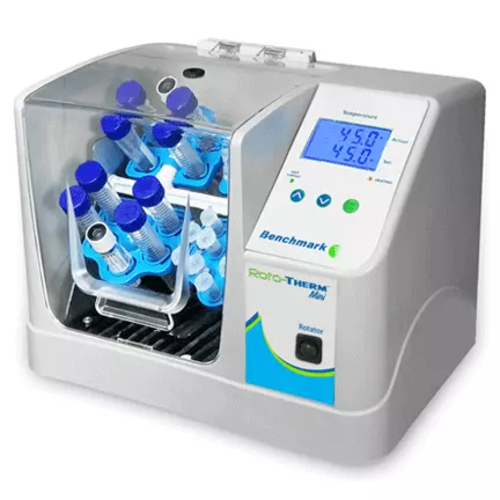

Roto-Therm Incubated Tube Rotator

Item #: H202X Series
Manufacturer: Benchmark Scientific

Product Description

Benchmark’s new Roto-Therm series of incubated rotating mixers provide a wide range of mixing capabilities. Suitable for an array of laboratory applications including resuspension, protein binding, nucleic acid purification, histochemistry, hybridization etc, the mixers include

interchangeable tube holders for accomomodating all common tube sizes from 0.5ml to 50ml. The motion can be adjusted from vertical (end over end) mixing, to horizontal (rolling or hybridization style) mixing.

For applications requiring temperature control, the Roto-Therm series can be digitally programmed to maintain chamber temperatures of ambient +5°C to 60°C and include an “in-lab” calibration function for ensuring accurate temperature control.

The Roto-Therm is also available in a “Plus” configuration, providing the following additional features:

  • Variable speed: 5 to 70rpm
  • “Mix” function: Rotating in combination w/ oscillations (increased mixing)
  • “Pause” function: Rotating with intermittent “stops” during rotation
  • “Rock” function: Back and forth, gentle rocking motion (see-saw)

The Plus model also offer an additional rocking platform (4.5 x 3 in.), as well as a 96 x 0.2ml tube/strip/plate holder for mixing PCR vessels in the “Mix” (oscillating) mode.

Features

  • Rotated mixing with temperature control
  • Includes tube holders for common tube sizes
  • Available with variable speed control and advanced shaking/ mixing modes: Mix (Oscillating), Pause, Rock

Specifications

Temperature:

Ambient +5 to 60°C

Speed (H2020):

24rpm
Speed (H2024):

5 to 70rpm

Mixing Modes (H2024):

Mix, Pause, Rock

Dimensions:

11.8 x 8.5 x 9in (29.5 x 21.6 x 22.9cm)

Electrical:

115 or 230V, 50-60Hz, 0.5A (H2020) / Universal Voltage 100 to 240V, 50-60Hz, 0.5A (H2024)
Warranty:
2 Years
