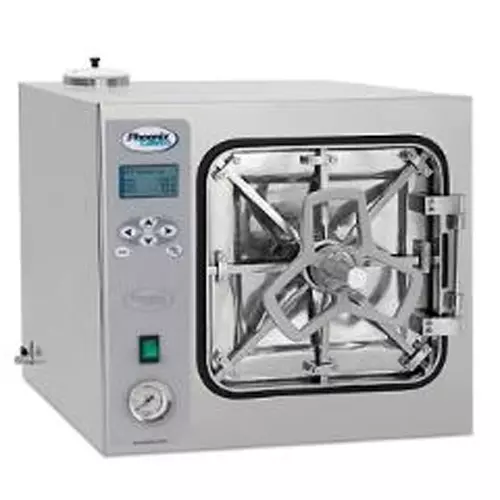

Phoenix Square 12L

Item #: Z-AB-54
from: $16999.00 sale: $13939.18
Quantity unavailable. Try selecting a smaller quantity.

Product Description

For the sterilization and drying of materials and several instruments in deontological and medical clinics, health centres, first aid posts, laboratories, etc. Internal chamber, cover and stainless steel trays.Manual water supply. It has a micro processed controller with 10 cycles totally configurable and protected with password, 9 are designated and 1 is free. It allows the operation temperature adjustable reaches up to 134°C and the time programming of the sterilization and drying. Internal air automatic removal. It is provided with a wide graphic display, with 72x40 mm view area for the visualization of the process parameters, independent manometer for the pressure reading.

Easy to install, hydraulic installation is not required. Capacity of 12 liters. Designed and manufactured with high quality materials, in accordance with standards ABNT NBR ISO 11816, ABNT NBR ISO 11817, ABNT NBR ISO 17665, ABNT NBR ISO 14971, ABNT NBR ISO 5410, ASME Section VIII, Division I, NR-13,EN 285, IEC 60601-1, IEC 60601-1-2, etc.


  • Manual or Digital: Electronic
  • ASME: Yes
  • Weight: 265 LB (120KG)
  • Item Name: Phoenix Square
  • Item Number: NDZ-AB-54
  • Door Type: Rectangle
  • Chamber Width: 12" (305 mm)
  • Chamber Height: 24" (610 mm)
  • Chamber Depth: 12" (305 mm)
