myGel Mini Electrophoresis System

Item #: E1101 Series
Manufacturer: Benchmark Scientific

Product Description

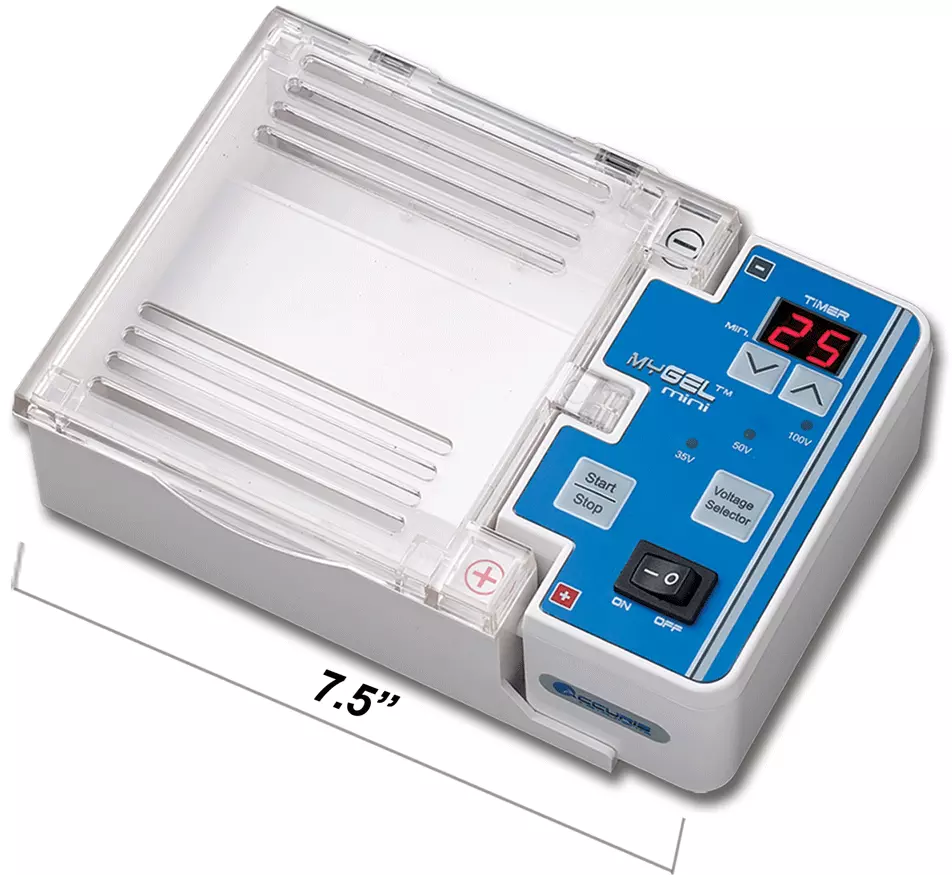

The Accuris myGel Mini electrophoresis system includes all of the equipment that you need to get up and running - gel tank, power supply and two casting sets. Ideal for personal use, small laboratories or the classroom, this gel box/power supply combination is compact and easy to use.

The myGel mini gel box attaches directly to the power supply for a secure connection every time. Selectable parameters include 3 preset voltages - 35V, 50V or 100V - and a 99 minute timer. All are set using the membrane keypad.

The safety lid is vented to help dissipate heat generated during electrophoresis, and features a viewing area above the gel. Current will only run through the system when the lid is properly in place on top of the gel box.

Trays and casting stands for both 10.5 x 6cm and 5 x 6cm gels are included with the myGel Mini system, as are double-sided combs. The smaller tooth combs are compatible with multichannel pipettes. Casting is quick and easy - just place the tray in the casting stand and pour. The trays feature a dark contrast strip to help visualise wells while loading and lines that fluoresce under UV and blue light to track progress of the run.

Product Accessories

*Please select the quantity for each item you wish to order and click the 'Add To Cart' button below.

Model Name+ Description Price Quantity
E1101-CS1 Gel Casting Stand for 10.5x6cm Gels

Gel Casting Stand for 10.5x6cm gels, includes 2 trays, and 2 combs (22/12 teeth)

from: $38.00 sale: $32.30
32.3
E1101-CS2 Gel Casting Stand for 5x6cm Gels

Gel Casting Stand for 5x6cm gels, includes 4 trays, and 2 combs (18/10 teeth)

from: $60.00 sale: $51.00
51
E1101-COMB2 Reversible Combs, 18/10 Teeth

Reversible Combs, 18/10 teeth, for E1101-CS2 Casting Stand, pk 2

from: $7.00 sale: $5.95
5.95
E1101-COMB1 Reversible Combs, 22/12 Teeth

Reversible Combs, 22/12 teeth, for E1101-CS1 Casting Stand, pk 2

from: $7.00 sale: $5.95
5.95

Features

  • Complete system, includes gel box power supply and casting sets
  • Quick and easy gel casting, no clamps or spacers required
  • Compact design, footprint: 7 x 5.1 in.

Specifications

Output Voltage: 35V, 50V or 100V
Timer:0-99 min. or Cont.
Safety: Lid interlock
Max. Buffer (ml): 230
Gel Capacity: One: 10.5 x 6cm
Two: 5 x 6cm
Weight:1 lbs / 0.45 kg
Dimensions: 7.5 x 5.1 x 2.1 in
19 x 13 x 5.5 cm
Electrical:115V or 230V, 50-60Hz
