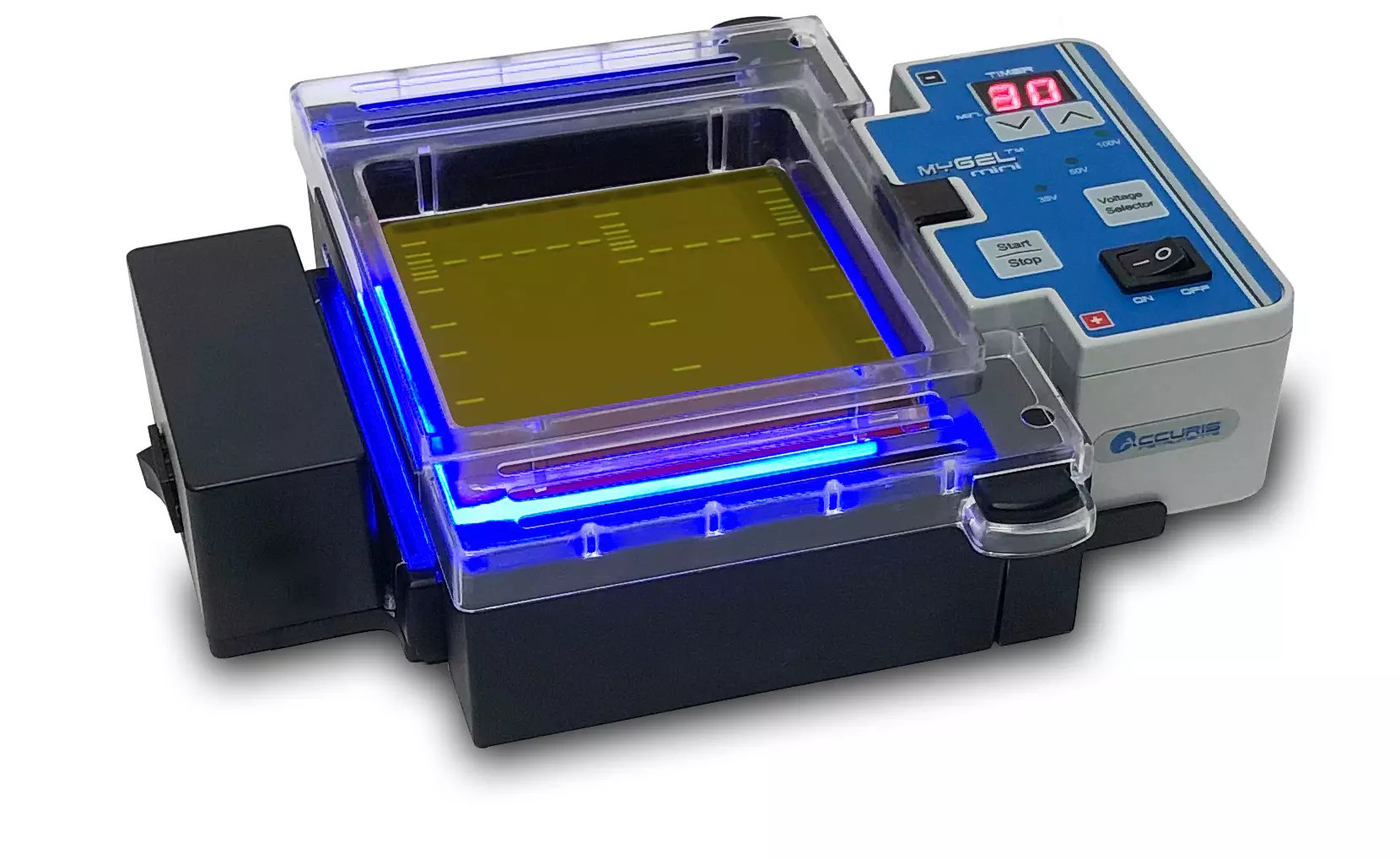

myGel InstaView Electrophoresis System

Item #: E120X Series
Manufacturer: Benchmark Scientific

Product Description

Complete system with power supply

The myGel InstaView comes complete with everything needed to cast, run and view mini electrophoresis gels, including an integrated power supply.

One large (10.5x10cm) or small (10.5x6cm) gel is accommodated by the gel tank. Gels are easily poured using the supplied trays, combs and leak-proof casting stand.

The power supply connects directly into the gel tank - no more leads to contend with. The connection is guaranteed to be right, every time. Output voltage can be adjusted to 35V, 50V or 100V and run time can be set for up to 99 minutes. A magnetic interlock between the gel tank and the lid prevents current from running through the system when the lid is not properly in place.

Once the myGel InstaView System is set up, simply slide the mini LED transilluminator into place under the tank and at any time turn it on to view the run in real time. An array of blue LEDs emits bright blue light at a wavelength of 465nm for optimal excitation of common green fluorescent stains such as SmartGlowTM, SYBYRTM Green and Gel Green, without damaging DNA. An orange filter is incorporated into the lid for visualizing DNA bands without any additional equipment or special glasses.

When it’s time to document results, place the included gel imaging enclosure over top of the myGel InstaView, and use the camera app on any smart phone to capture high resolution images without removing the gel from the tank. Images are easily shared via email or text message or printed.

Product Accessories

*Please select the quantity for each item you wish to order and click the 'Add To Cart' button below.

Model Name+ Description Price Quantity
E1200-CS1 Extra casting set for 10.5x10cm and 10.5x6cm gels

Extra casting set for 10.5x10cm and 10.5x6cm gels. Includes stand, trays, E1101-COMB1 double-sided combs

from: $40.00 sale: $34.00
34
E1101-COMB1 Extra double-sided combs

Extra double-sided combs, 22/12 teeth, for E1200-CS1 Casting Set, pk of 2

from: $7.00 sale: $5.95
5.95
E2100 myVolt Mini power supply

myVolt Mini power supply, 115V

from: $199.00 sale: $169.15
169.15
E2301 myVolt Touch power supply

myVolt Touch power supply, 115V

from: $510.00 sale: $433.50
433.5
E1200-OC Orange cover for mini LED transilluminator

Orange cover for mini LED transilluminator (for use separately from the gel tank)

from: $35.00 sale: $29.75
29.75
E4000-VG1 SmartBlue Viewing Glass

SmartBlue Viewing Glass

from: $46.00 sale: $39.10
39.1

Specifications

Complete system

  • Output voltage: 35V, 50V or 100V
  • Timer: 0-99 mins, continuous
  • Safety: Magnetic switch
  • Buffer Volume: 230ml
  • Gel Capacity: 1-10.5x10cm or 1-10.5x6cm gel, 0.5cm thick
  • Transilluminator: Blue LED, 465nm
  • WxDxH (w/enclosure): 10x8.25x5in/25.5x21x14cm
  • Weight: 2.3lb/1.04kg
  • Electrical: 115V, 60Hz
  • Warranty: 2 years
