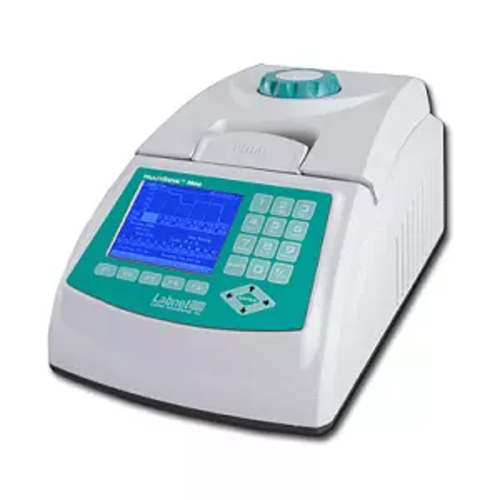

MultiGene Mini

Item #: TC020 Series
Manufacturer: Labnet
sale: $3090.61
from: $3973.64 save: $883.03
Quantity unavailable. Try selecting a smaller quantity.

Product Description

The MultiGene Mini is a compact and lightweight thermal cycler, but do not let its small size fool you. This cycler is packed with features typically found only on larger thermal cyclers.

Excellent accuracy and uniformity combine with fast ramping rates to provide quality results. An algorithm calculates sample temperature, based on volume, to control heating and cooling of the block. This means that samples reach programmed temperatures quickly, without any overshoot or lagging. Powerful Peltier units provide ramping rates as fast as 5°C/second.

Programming the MultiGene Mini is simple and intuitive. The control pad combines function keys, a key pad and arrow keys for easy navigation and entering of parameters. The large graphical display is easy to read. In addition to the standard parameters of time and temperature, the software also allows for successive time and temperature increments and decrements (for touchdown amplification and auto-extension), auto-restart after a power failure, end of cycling elongation steps and extended soaks at 4°C. One hundred programs, each with up to nine segments, can be stored in memory.

The MultiGene Mini is available with either a 24 x 0.2 ml tube block or 18 x 0.5 ml tube block. Blocks are easily interchanged. Units come standard with an adjustable heated lid. The lid features a slip gear to provide proper compression to prevent sample evaporation without deforming the tubes.


  • Fast ramping - up to 5°C/second
  • Intuitive graphical programming
  • Lightweight and compact
  • Interchangeable blocks - 24 x 0.2 ml and 18 x 0.5 ml
  • Economical - half the price of a full size unit


Product Specifications
Block capacity 24 x 0.2 mL
Temp. control range 4° to 99°
Max. heat/cool rate 5°C per sec/ 4°C per sec
Accuracy/uniformity ±0.3°C/±0.5°C at 55°C
Heated lid temperature 105°C
Max. number of cycles 99
Gradient Temperature Range 30°C to 99°C
Max. number segments 9
Max. holding time/step 99 minutes 59 seconds
Program Memory up to 100 programs
Dimensions (W x D x H) 21.8 x 28.5 x 17.8 cm
Weight 7.1 lb/3.2 kg
Electrical 230V~ or 120V~, 50/60 Hz
