Handheld Homogenizer

Item #: D1000
Manufacturer: Benchmark Scientific
sale: $1099.00
from: $1293.50 save: $194.50
Quantity unavailable. Try selecting a smaller quantity.
Product Description

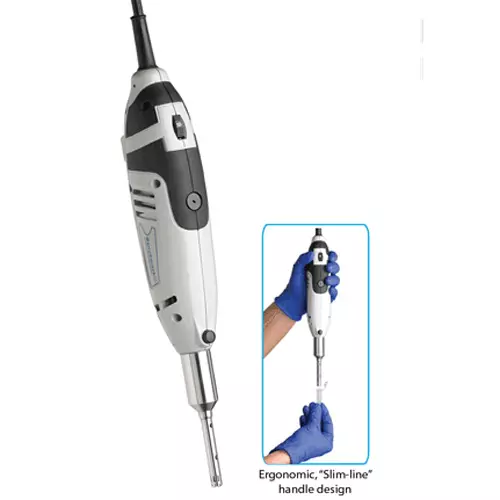

The D1000 is a rotor stator homogenizer, and works by drawing the sample, in liquid, into the generator probe with the variable speed rotor, and then forcing it out through the slots in the stator. This achieves mechanical shearing of the sample. As the sample is repeatedly drawn up and forced through the stator, additional shearing takes place.

Most samples are completely homogenized in 30 seconds are less. A powerful, 130W motor drives the rotor at speeds from 8,500 to 30,000 rpm. Speed is adjustable in six steps to meet sample processing needs. A separate on/off switch allows the homogenizer to be left at the appropriate setting.

  • Homogenize most samples in under 30 seconds
  • For volumes from 100µl to 250ml
  • Supplied with both 5mm & 7mm generator probes

Generator probes are available in four sizes. The 5mm and 7mm diameter have a 50mm length for use with samples in microbtubes. The 10mm x 115mm is ideal for use with 15 and 50ml tubes and 14mm x 130 mm, for 50ml tubes and vessels up to 250ml. The unit is supplied with one each of the 5mm and 7mm generator probes.

All the generator probes are made of stainless steel and can be sterilized by autoclaving.

Speed Range:

8500 to 30,000rpm


0.1 to 250ml

Noixse Level:

<70 db

Operating Temp. Range:

+4° to 65°C


1.89 x2.3 x 9 in.

4.5 x 5.8 x 22.5 cm


1.35 lbs /0.62kg

115V, 60Hz or 230V, 50HZ


Two Years
