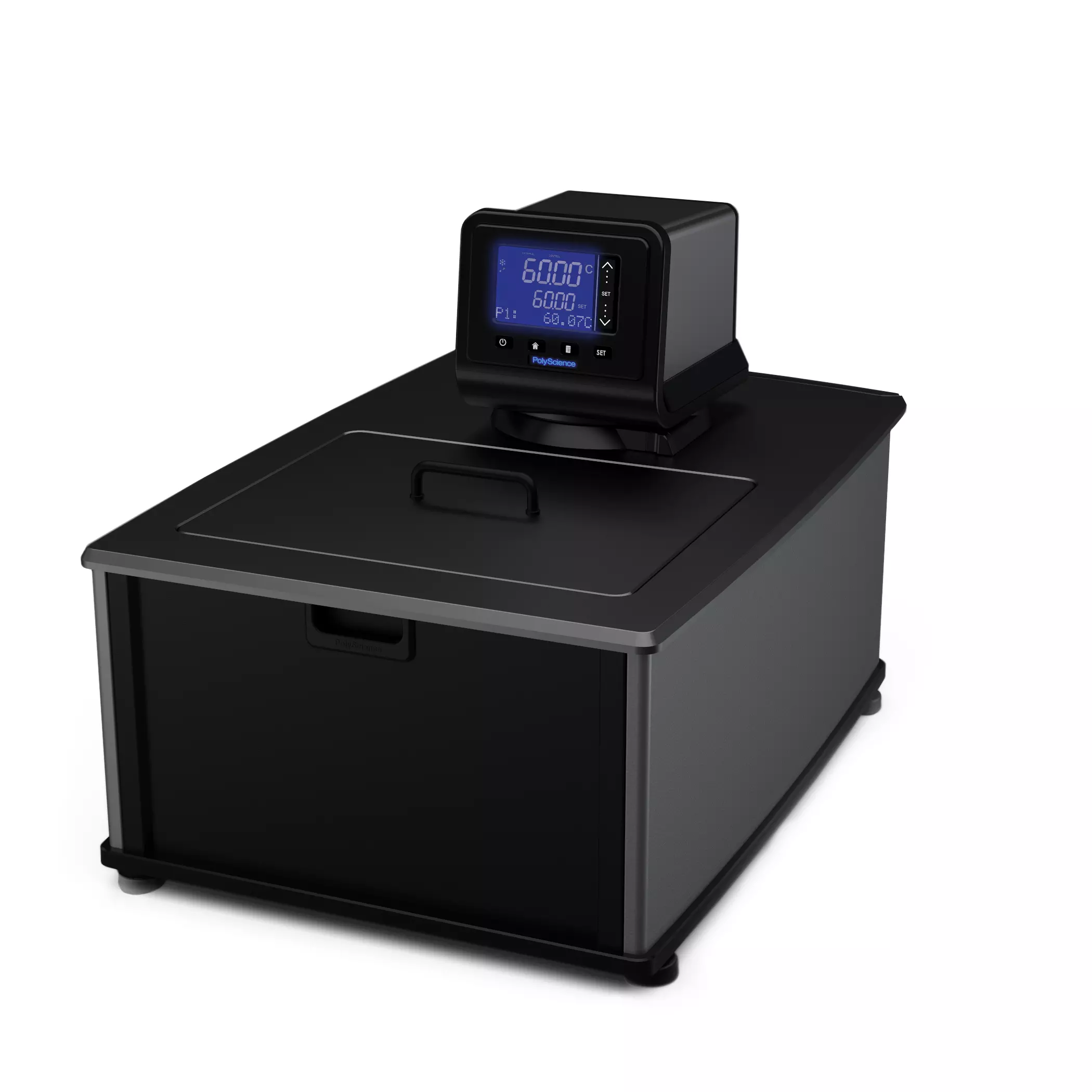

20L Heated Circulator, Advanced Digital

Item #: AD20H200-A11B
Manufacturer: Polyscience
sale: $3043.58
from: $3381.75 save: $338.17
Quantity unavailable. Try selecting a smaller quantity.
Product Description
Description

200, 20 L Htg. Circulator

Controller Type
Advanced Digital
Display
3.75" Touch-Pad LCD
Connectivity
Ethernet, USB A & B, RS232/addressable RS485, External Temperature Probe
Languages Supported
4: French, German, Spanish, English
Swivel 180 Rotating Controller
Yes
Working Temperature Range °C
Ambient +10° to 200°
Temperature Stability °C
±0.01°
Fluid Optimization/Specific Heat Tuning
Automatic and/or user-adjustable
Temperature Calibration Capability
1-point
Working Access (L x W x D) (cm)
25 x 31.6 x 14 cm
Pump Type
Pressure/Suction
External Temperature Control Capability
Yes
Flammability Class (DIN 12876-1)
III (FL)
Features
  • ntuitive 3.75” (9.5 cm) display with touch-pad control
  • 4 languages: French, German, Spanish, English
  • Swivel 180™ Rotating Controller
  • On-board connectivity: USB-A & B, Ethernet, RS-232/RS-485 and external temperature probe
  • On-screen prompts
  • Automatic performance optimization and specific heat tuning
  • Single-point calibration capability
Specifications
Working Temperature Range °F
Ambient + 20° to 392°
Working Temperature Range °C
Ambient +10° to 200°
Reservoir Capacity (gallons)
5.28
Reservoir Capacity (liters)
20
Reservoir/Tank Material
Stainless Steel
Reservoir Cover
Included
DuraTop
Yes
LidDock
Yes
Working Access (L x W x D) (inches)
9.85 x 12.45 x 5.5 in
Working Access (L x W x D) (cm)
25 x 31.6 x 14 cm
Temperature Stability °F
±0.02°
Temperature Stability °C
±0.01°
Display
3.75" Touch-Pad LCD
Display Resolution (Set)
0.01
Display Resolution (Read)
0.01
Pump Type
Pressure/Suction
Pump Speed
Variable
Process Connections
1/4" (F) NPT
External Temperature Control Capability
Yes
Flammability Class (DIN 12876-1)
III (FL)
Over-Temperature Protection / Failsafe Heater Control
Yes
Low Liquid Level Protection Yes
Reservoir Drain
Yes
Cooling Coil
Yes
Included Software PolyTemp Viewer, USB driver
Maximum Ambient Temperature °F
95°
Maximum Ambient Temperature °C
35°
Overall Dimensions (L x W x H) (inches)
24 x 16.5 x 16.6 in
Overall Dimensions (L x W x H) (cm)
61 x 41.9 x 42.2 cm
Environmental Compliance RoHS, WEEE
Shipping Weight (pounds)
70.0
Shipping Weight (kilograms)
31.7
